ZJ Series Roots Vacuum Booster Pumps

Product OverviewZJ Series

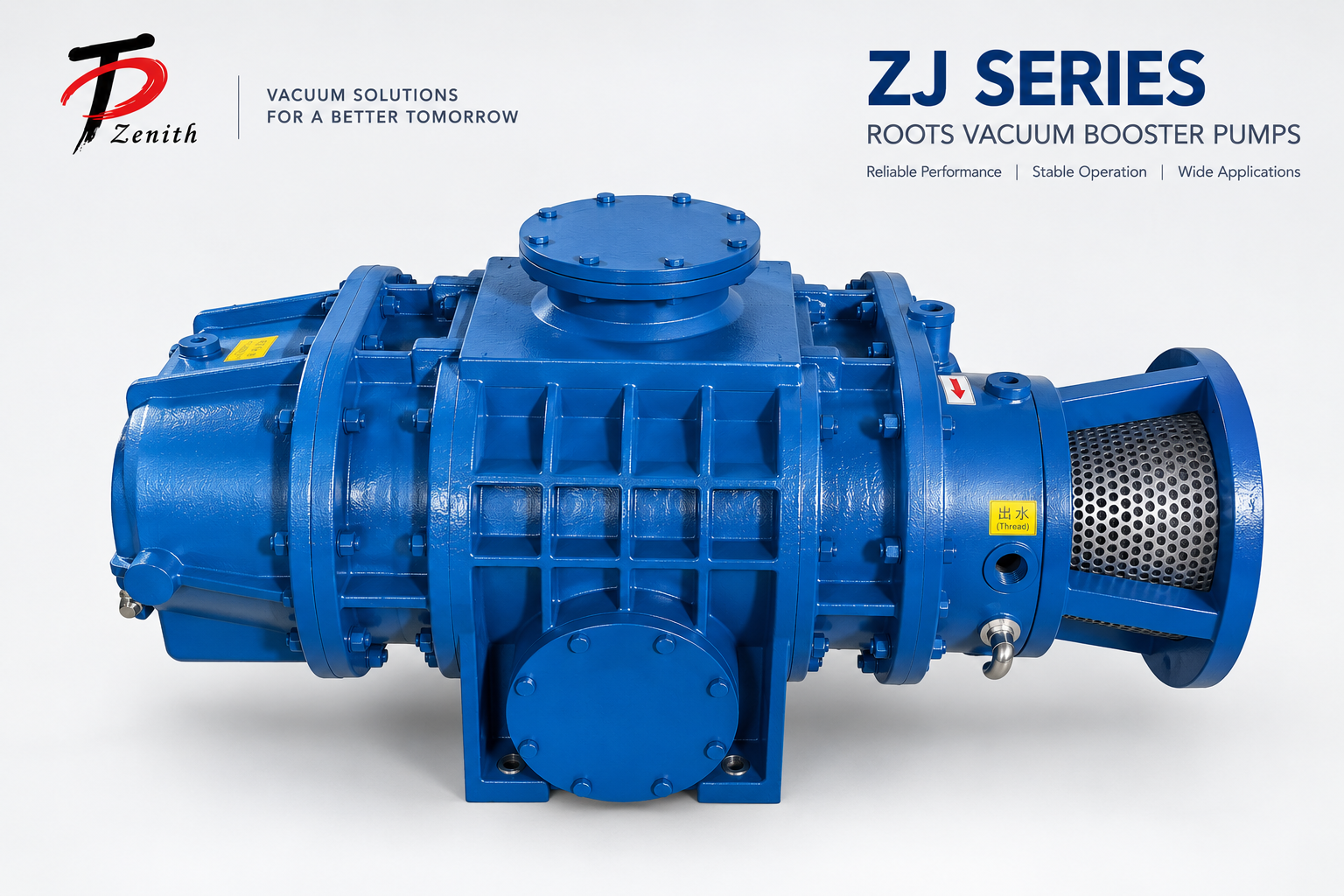

ZJ Series Roots vacuum booster pump manufactured by ZT Pumps

Click image to enlargeTap image to enlarge

The ZJ Series consists of standard Roots vacuum booster pumps designed to operate in combination with a backing pump. Two synchronized, non-contact rotors provide high pumping capacity and significantly increase system pumping speed, particularly in the medium-vacuum range. With nominal pumping speeds from 108 to 18,000 m³/h (30–5,000 L/s), the ZJ Series is suitable for chemical processing, vacuum coating, metallurgy, heat treatment, vacuum drying and other high-capacity industrial vacuum applications.

Working Principle

Two synchronized figure-eight-shaped rotors rotate in opposite directions inside a close-tolerance housing without contacting each other or the pump chamber. Gas entering the inlet is trapped between the rotors and housing and transported toward the exhaust as the rotors rotate. The ZJ Series operates without significant internal compression and is designed to work in combination with a backing pump. For standard ZJ configurations, the backing pump establishes the required pre-vacuum before the Roots booster is started.

Key Features

High pumping capacity in the medium-vacuum range

Wide pumping-speed range from 108 to 18,000 m³/h (30–5,000 L/s)

Non-contact rotor operation minimizes mechanical wear

Pumping chamber requires no internal lubrication, minimizing oil contamination of process gas

High pumping capacity with relatively low installed motor power

Compact design for easy integration with suitable backing pumps

Flanged inlet and outlet connections for straightforward vacuum-system integration

Simple, robust construction with low routine maintenance requirements

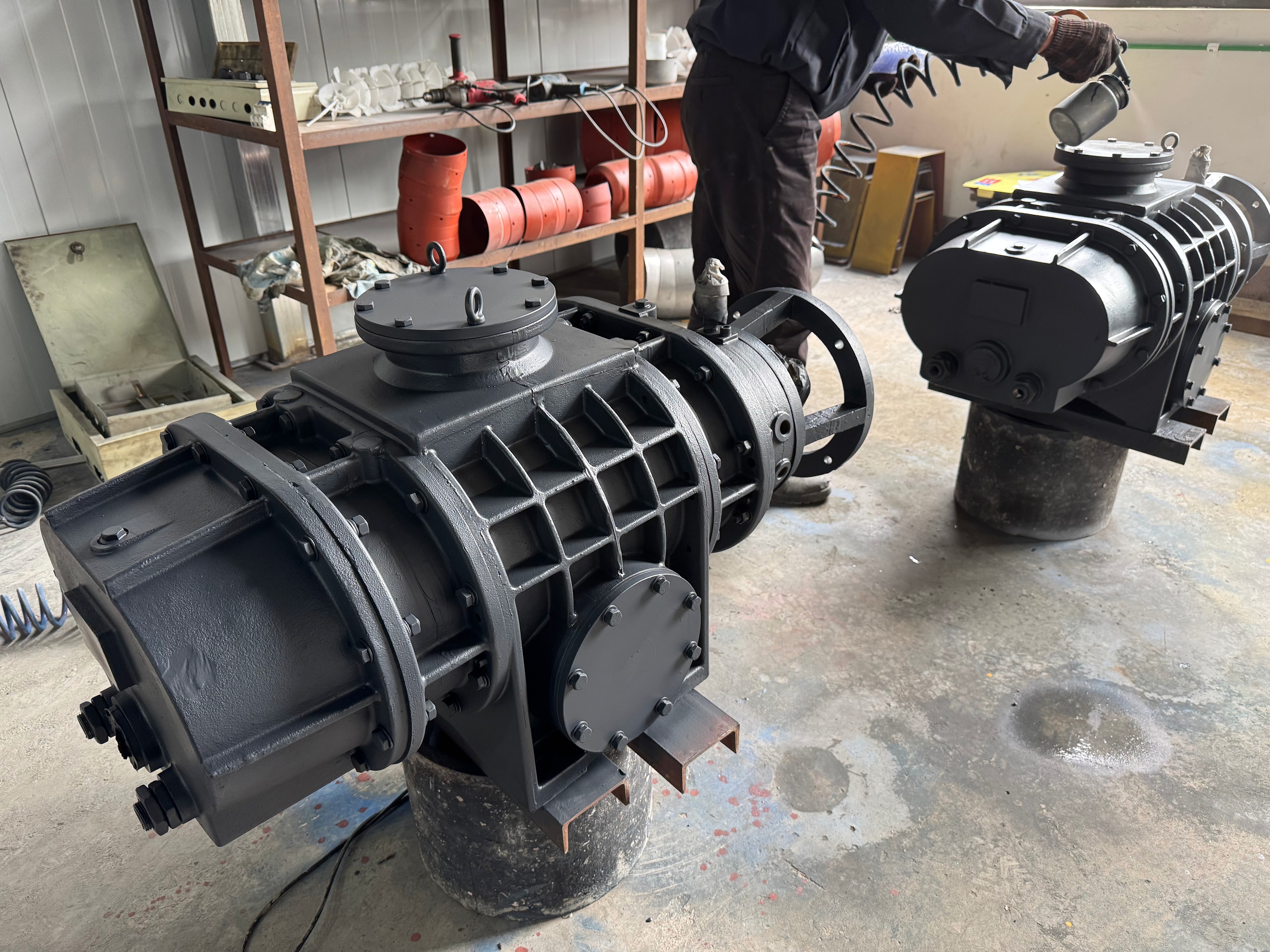

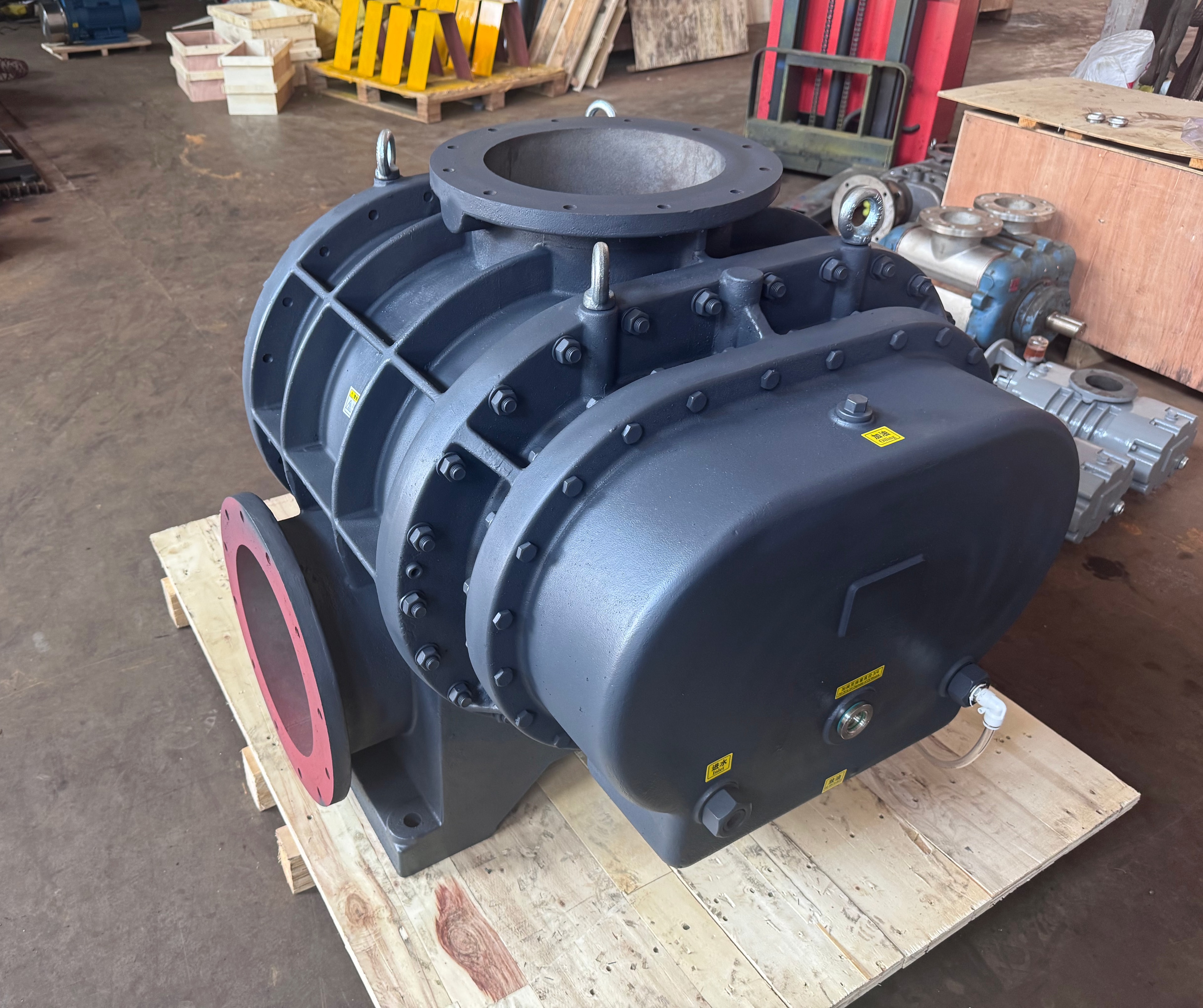

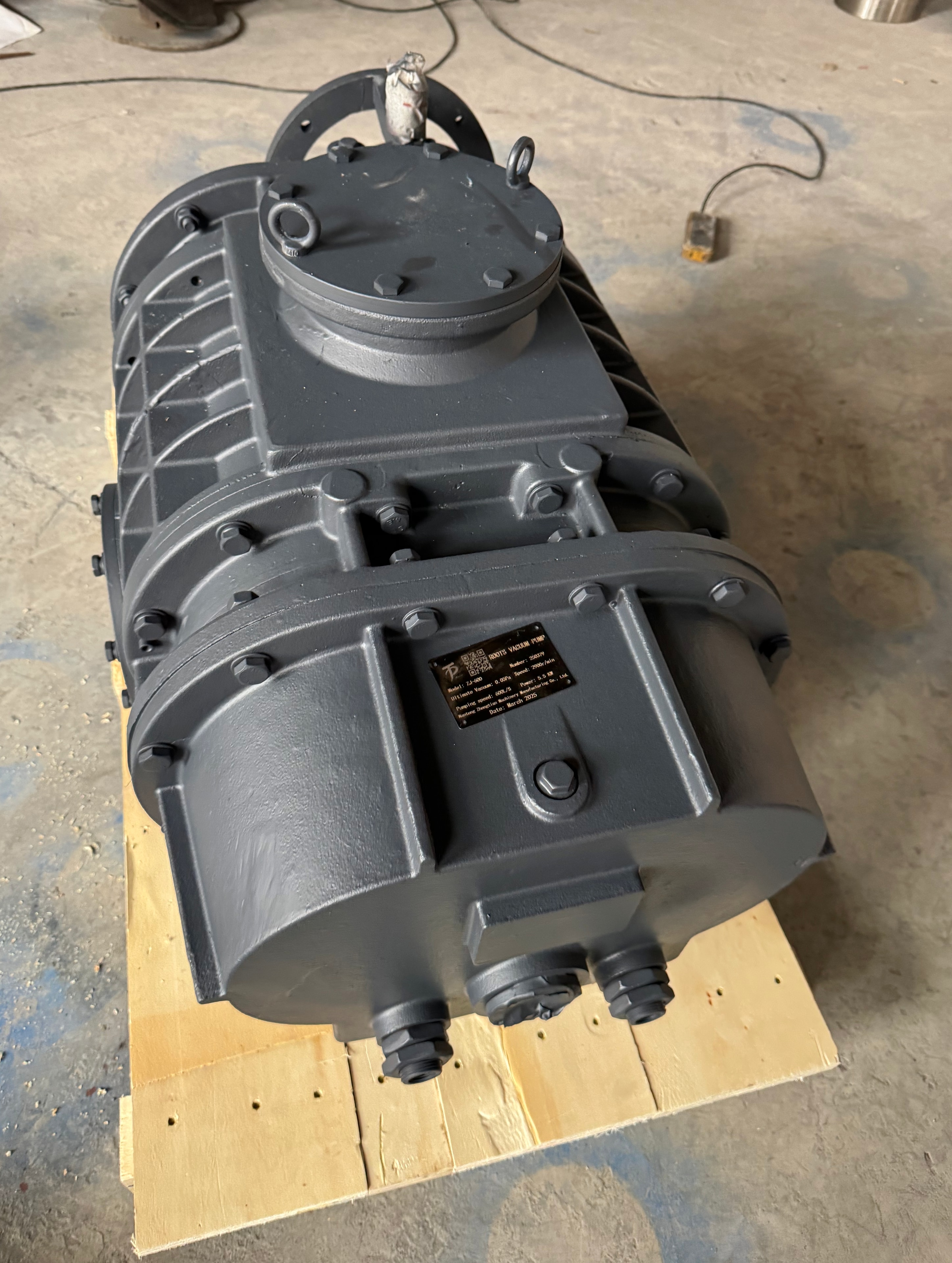

Product Gallery

20 photos

Model	Pumping Speed	Ultimate Pressure*	Motor Power	Speed (RPM)	Inlet	Outlet	Weight
ZJ-30	108 m³/h (30 L/s)	0.05 Pa	0.75 kW	2880 rpm	50 mm	40 mm	66 kg
ZJ-70	252 m³/h (70 L/s)	0.05 Pa	1.5 kW	2880 rpm	80 mm	50 mm	87 kg
ZJ-150	540 m³/h (150 L/s)	0.05 Pa	3 kW	2880 rpm	100 mm	100 mm	198 kg
ZJ-300	1080 m³/h (300 L/s)	0.05 Pa	4 kW	1440 rpm	150 mm	150 mm	480 kg
ZJ-600	2160 m³/h (600 L/s)	0.05 Pa	5.5 kW	2880 rpm	150 mm	150 mm	490 kg
ZJ-1200	4320 m³/h (1200 L/s)	0.05 Pa	11 kW	1440 rpm	300 mm	300 mm	1350 kg
ZJ-2500	9000 m³/h (2500 L/s)	0.05 Pa	18.5 kW	1440 rpm	400 mm	400 mm	2400 kg
ZJ-5000	18,000 m³/h (5000 L/s)	0.05 Pa	30 kW (VFD)	2860 rpm	400 mm	400 mm	1880 kg

*Ultimate pressure depends on the backing pump, vacuum-system configuration and operating conditions. ZJ Series Roots vacuum boosters require a suitable backing pump.

Typical Applications

Chemical Processing

vacuum distillation, solvent recovery and process vacuum

Vacuum Coating

optical, tool and decorative coating systems

Metallurgy & Heat Treatment

vacuum sintering, brazing and heat-treatment systems

Vacuum Drying

industrial drying and degassing processes

Chemical Fiber & Plastics

degassing during material processing and forming

General Industrial Vacuum

booster stages for high-capacity vacuum systems
